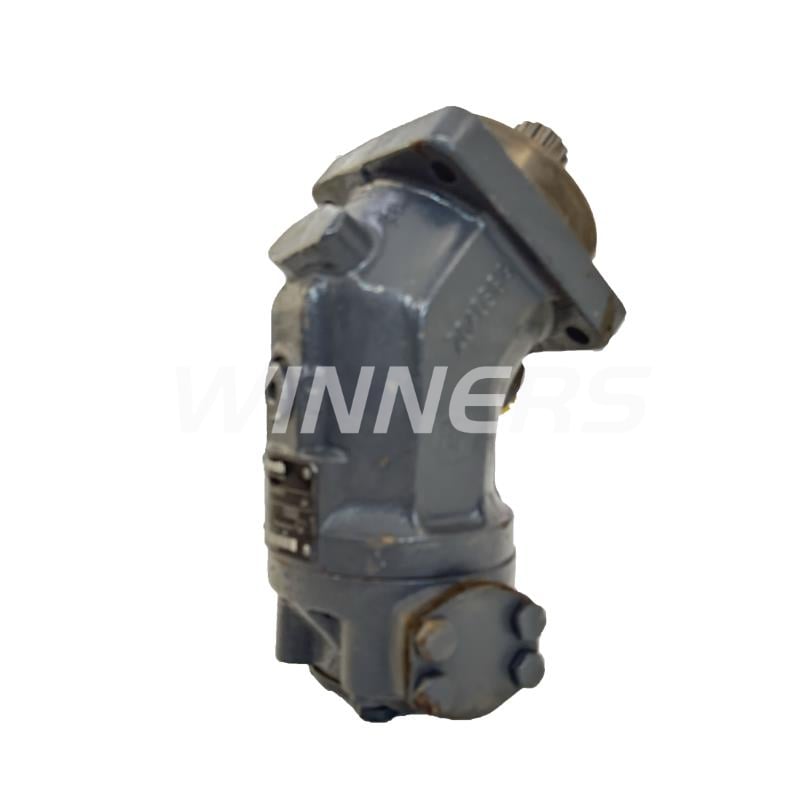

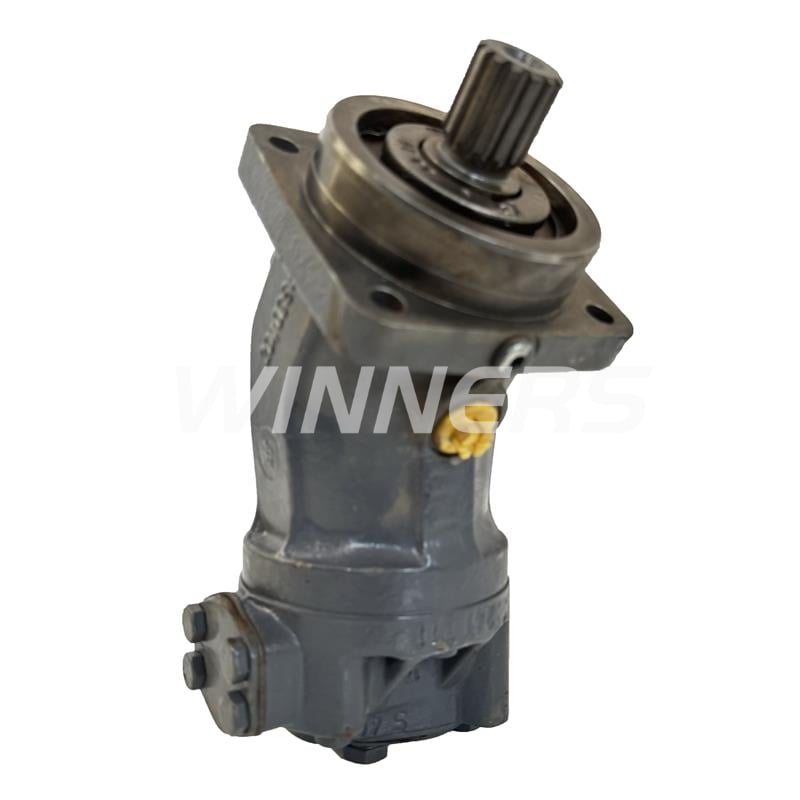

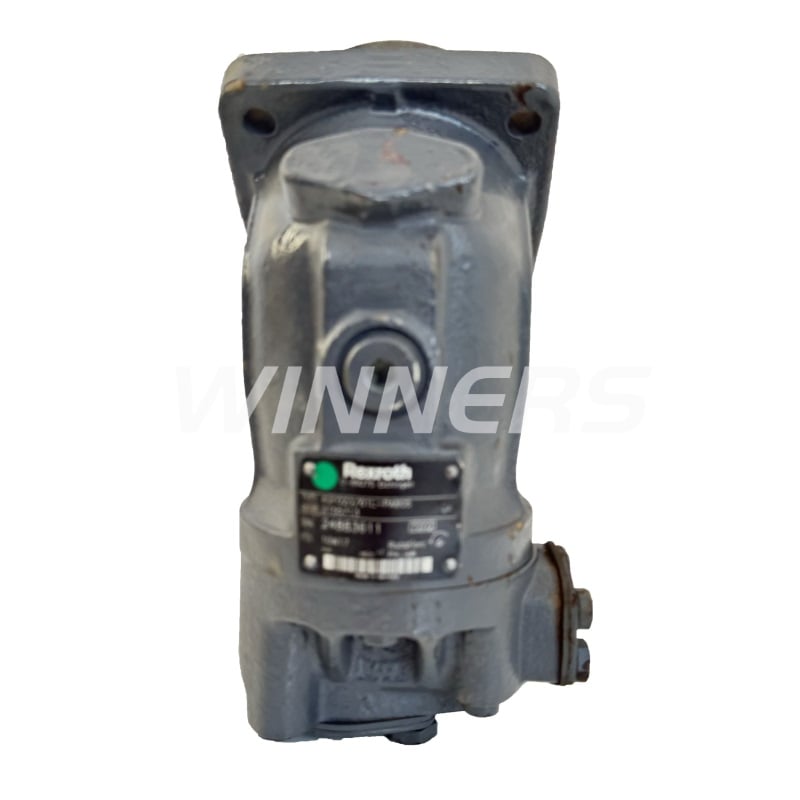

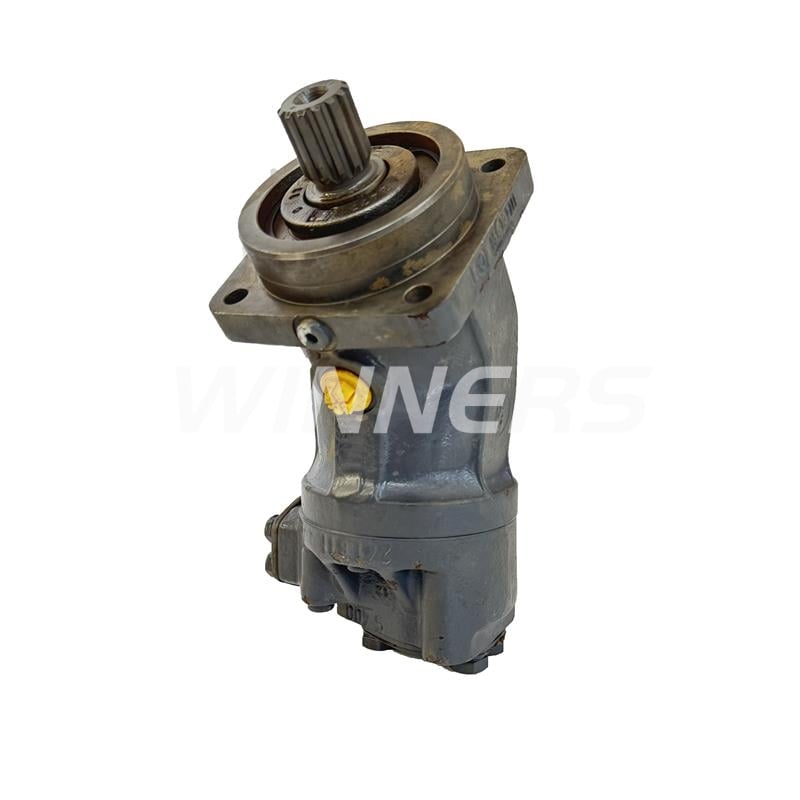

A2FO23 CONCRETE PUMP HYDRAULIC PUMP
A2FO23 is a single-stage cast iron hydraulic pump suitable for construction machinery, with a working temperature range of 30-90 ℃ and a nominal pressure of 32MPa. The pump has a fixed displacement and is suitable for open or closed systems. When used as a motor, the output speed is proportional to the flow rate and inversely proportional to the displacement Features: The cylinder body and oil distribution plate adopt spherical oil distribution, which can automatically align during rotation. The circumferential speed is small, the efficiency is high, the drive shaft can withstand radial loads, the noise is low, and the cleanliness of the hydraulic oil should be maintained in any situation.
- Overview
- Parameter
- Recommended Products
|
Showroom Location |
None |
|
Place of Origin |
China |
|
Weight |
12 |
|
Brand Name |
Rexroth |
|
Structure |
Piston Pump |
|
Power |
Hydraulic |
|
Pressure |
High Pressure |
|
Standardor Nonstandard |
Standard |
|
Usage |
Oil |
|
Fuel |
Diesel |
|
Stock |
Yes |
|
Warranty |
1 Year |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Pn |
400 bar |
|
P max |
450 bar |
|
Pn+Pmax |
700 bar |
|
Drift shaft |
DIN 5480 |
|
Flange |
L |
|
Rear Port |
100 |
|
V min |
5 mm2/s |
|
T max |
+115 |
|
Vmax |
1600 mm2/s |
|
Nmax |
5699 |
